Deploy a ComfyUI workflow

Install the ComfyUI-Runflow custom-node plugin, add a Deploy node, click Deploy. Your workflow becomes a callable Runflow API.

Beta. ComfyUI Deploy is in public beta. The plugin, API surface, and pricing rate cards are stable but may evolve. Expect breaking changes to be called out in the changelog before they ship.

ComfyUI-Runflow is a custom-node plugin that publishes a ComfyUI workflow to Runflow as a callable API. The plugin captures the workflow graph, the runtime manifest (ComfyUI commit, custom-node commits, package versions, cached models), and uploads it on a single click. The deployed workflow gets a playground in the Runflow dashboard and a stable API surface invocable with any Runflow key that has the right scopes.

Two things to internalize before you click Deploy on anything you did not author:

1. Never type your API key into the Deploy node’s api_key widget. ComfyUI persists widget values into the workflow JSON, so a key entered on the node travels with every export, screenshot, paste, and bug-report attachment. Configure the key under Settings → Runflow → Connection instead; that storage is local to your machine and never serialized into a workflow file. The same caution applies to the Deploy node’s host widget. A workflow you load from a stranger can pre-populate host to send your key to their server when you click Deploy. Before clicking Deploy on any imported workflow, clear both host and api_key on the Deploy node (or delete and recreate the node so the widgets reset to empty).
2. Auto setup runs git clone and pip install from URLs declared by the loaded workflow. Treat it like any other untrusted shell script: only click Auto setup for workflows from sources you trust. A hostile workflow can use the button to execute arbitrary code on your machine.

What you’ll do

Three steps: install the plugin, configure your key under Settings, click Deploy. The optional Runflow Input / Output nodes give the deployed API a clean schema.

Video walkthrough

End-to-end walkthrough of everything below (install, configure, deploy, call):

Prerequisites

• A working ComfyUI install.
• A Runflow API key. Create one with the scopes below.
• python, pip, and git on PATH (used by the optional Auto setup feature).

Key scopes, by what you actually do

Doing	Scopes
Publish a brand-new endpoint, never update from this client	comfyui-workflows:read + comfyui-workflows:create
Iterate (redeploy to the same slug from this client)	add comfyui-workflows:edit
Remove workflows from this client	add comfyui-workflows:delete

The Deploy button uses read to detect existing slugs and either create (new) or edit (replace) accordingly. edit is broad: it lets the key replace the graph of any existing endpoint owned by the org without changing the slug. If the key leaks, an attacker holding edit can silently swap a production workflow’s graph. Issue the narrowest scope set you actually need and rotate on any suspicion of leak.

The plugin sends Authorization: Bearer <key> and lets the API derive your organization from the key. No organization id is needed.

Step 1: install the plugin

Clone the plugin into your ComfyUI custom_nodes/ directory and restart ComfyUI. $COMFYUI_DIR below is your ComfyUI install root (the folder that contains main.py, custom_nodes/, models/, etc.):

cd "$COMFYUI_DIR/custom_nodes"
git clone https://github.com/runflow-io/ComfyUI-Runflow.git
# or, for development against a checkout you already have:
# ln -s /path/to/ComfyUI-Runflow ComfyUI-Runflow

Restart ComfyUI (a UI refresh is not enough; the Python process has to re-exec). After the restart you’ll see a new Runflow category in the node picker.

The plugin is at 1.0.0 on main HEAD; no version tags are published yet. Pin the commit SHA after clone if you need a hard guarantee against future renames of node classes, widgets, or settings.

Step 2: configure your account

Open ComfyUI Settings → Runflow → Connection and fill in:

Setting	Default	What it is
Runflow.ApiUrl	https://api.runflow.io	API base URL. Override only when running against a staging stack.
Runflow.ApiKey	(empty)	The Runflow API key from above.

Settings persist locally on your machine; they are not written into any workflow file. Do this once and forget the per-node widgets exist. The Runflow tab holds more than these connection fields; see The Runflow settings panel for the full reference, including the security controls.

The Deploy node also exposes host and api_key widgets, but, as called out at the top of this page, those values are persisted into the workflow JSON and travel with every export. The widgets are there for ephemeral multi-account testing on a machine you control; for normal use, leave them empty and rely on the global Settings.

Step 3: deploy

Add a Runflow Deploy node (under the Runflow category) and set its endpoint_name widget. The default is default; rename it before clicking Deploy or you’ll publish to a slug literally called default. The slug is derived from this name: lowercased, with whitespace mapped to -, and anything outside a-z, 0-9, -, _ stripped. So Background Removal v2.1 becomes background-removal-v21 (the . is silently dropped); pick a name without surprises.

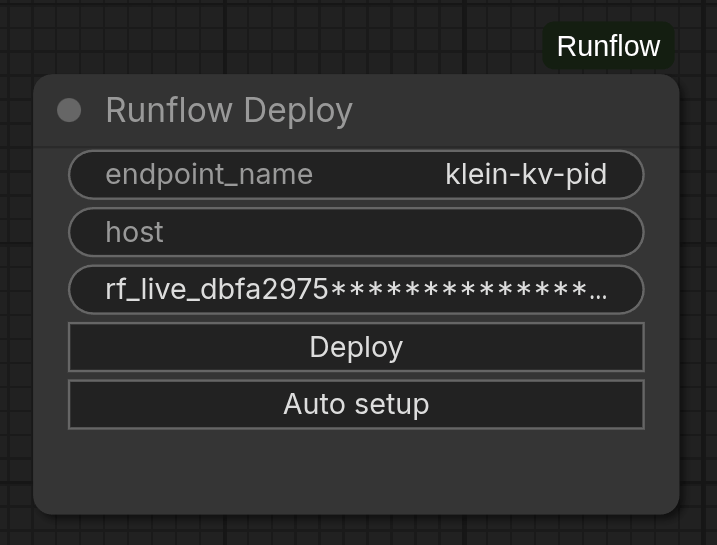

The Runflow Deploy node, with its endpoint_name, host, and api_key widgets above the Deploy and Auto setup buttons. The api_key widget is a plain text field with no masking; the key shown here is redacted in the screenshot. Leave it blank for normal use and rely on the global Settings.

Click Deploy. The button flashes Deployed ✓ on success. On failure the plugin shows a browser alert() with the underlying error (missing API key, missing scopes, slug validation, HTTP failure, etc.) and the button returns to Deploy. The HTTP response is the terminal state; there is no separate deployment job to poll.

On success, open the workflow in app.runflow.io, test it in the playground, inspect the graph the platform recorded, and adjust any settings exposed by your Runflow Input nodes.

Call the deployed workflow

Dispatch a run against your workflow’s canonical your-org/your-endpoint path, where your-org is your organization slug (visible at the top of the dashboard, derived from the API key) and your-endpoint is what endpoint_name slugified to. The request body uses the same shape as a model run. The example below assumes a workflow with three Runflow Input nodes (input_id set to prompt, width, height); replace those keys with whatever input_id you set on your own input nodes.

curl -X POST https://api.runflow.io/v1/comfyui-workflows/your-org/your-endpoint/runs \
  -H "Authorization: Bearer $RUNFLOW_API_KEY" \
  -H "Content-Type: application/json" \
  -d '{
    "input": {
      "prompt": "a sea otter holding a smooth pebble, studio photography",
      "width": 1024,
      "height": 1024
    },
    "callback_url": "https://your-server.com/webhook"
  }'

Omit callback_url to poll GET /v1/runs/{id} instead. See Runs for the lifecycle, Callbacks + Verify callback signatures for the async pattern, and the JavaScript SDK guide for a typed client. Invocations bill against the calling key like any other model run.

What you get back

The completed run’s output carries kind: "comfyui_outputs" and an outputs array — one entry per emitted artifact file, each labeled by the output_id of the Runflow Output node that produced it. A node that emits several files (a batch) yields several entries sharing one output_id:

{
  "id": "01J0...",
  "status_code": "succeeded",
  "output": {
    "kind": "comfyui_outputs",
    "outputs": [
      {
        "output_id": "image",
        "url": "https://...",
        "content_type": "image/png",
        "size_bytes": 1048576
      },
      {
        "output_id": "image",
        "url": "https://...",
        "content_type": "image/png",
        "size_bytes": 1041923
      }
    ]
  }
}

Each entry’s url is presigned and time-limited. Iterate the whole array — group by output_id when you need per-node outputs — and download or re-upload outputs to your own storage on receipt.

Billing & GPU pricing

Deployed ComfyUI workflows bill per second of GPU wall-time: from the moment the worker boots the container for your run to the moment it returns the result. Idle workers cost nothing (the platform scales to zero between runs); cold starts on a new GPU type are billed alongside the run.

What you pay per second

Rates are per GPU second and depend on which GPU your run lands on. The current authoritative rate card lives at runflow.io/pricing; check there before sizing a budget. Rates apply uniformly across runs from any caller (your API key, the playground, embedded Studio). To estimate a specific workflow, run it once and read the cost and GPU seconds back from the run record (see What the run record shows).

Picking a GPU

GPU selection is set on the workflow, not per run. Each ComfyUI workflow carries a gpu_mode of either:

• auto (default): the platform routes each run to the cheapest GPU that fits the workflow’s memory footprint. Use this unless you have a specific reason.
• explicit: the workflow is pinned to a chosen set of GPU models in gpu_explicit_models[]. Use this when a workflow needs guaranteed VRAM or a known fast path.

Switch gpu_mode via PATCH /v1/comfyui-workflows/{id} (workflow owner only); changing the specific GPU set an explicit workflow is pinned to is done by redeploying. Once a workflow is explicit, every run uses that GPU set regardless of caller.

Scale-to-zero behavior

The platform keeps a deployed workflow’s worker warm only while runs are arriving. After a short idle window the worker spins down and the next run pays a cold-start cost (typically 10-40s of GPU time depending on the model weights). For latency-sensitive workloads, send a warming run on a schedule, or keep the playground open during a session.

What the run record shows

GET /v1/runs/{id} returns billing metrics for completed ComfyUI runs (GPU model used and GPU seconds consumed). The webhook delivery payload does not carry them — it has the run’s status, output, and duration_ms — so read cost and GPU seconds from GET /v1/runs/{id}. To attribute spend per pipeline, set a metadata object at run creation; it is echoed back on both the webhook and the run record.

Define the external schema with Runflow Input / Output nodes

The plugin ships typed input and output nodes that declare the deployed API surface. Wire them into your workflow; everything else stays an internal implementation detail.

A workflow wired with Runflow Input (String) and Input (Int) nodes feeding an image-generation step, with a Runflow Output (Image) downstream and the Runflow Deploy node in the corner.

The node classes available today, grouped by category in the node picker:

Node	Class	Category	Default input_id / output_id	Purpose
Runflow Input (String)	RunflowInputString	Runflow/Input	string_input	String field on the deployed API.
Runflow Input (Int)	RunflowInputInt	Runflow/Input	int_input	Integer field.
Runflow Input (Float)	RunflowInputFloat	Runflow/Input	float_input	Floating-point field.
Runflow Input (Boolean)	RunflowInputBoolean	Runflow/Input	boolean_input	Boolean field.
Runflow Input (Image)	RunflowInputImage	Runflow/Input	image_input	Image input; callers send a URL or upload an asset.
Runflow Input (File)	RunflowInputFile	Runflow/Input	file_input	File input (a filename string in the graph); callers send a URL or upload an asset of any type.
Runflow Output (Image)	RunflowOutputImage	Runflow/Output	image_output	Names an IMAGE output. Each image in the batch is saved as PNG and returned.
Runflow Output (File)	RunflowOutputFile	Runflow/Output	file_output	Names a file output (video, 3D mesh, audio, archive) already written under ComfyUI’s output/ directory by an upstream save node.

Each input has three widgets: input_id (the stable join key the deployed API uses; never mutated at deploy time), display_name (label shown in the playground), description (help text). Each output has output_id and output_name; Runflow Output (File) additionally takes the file path on its forced value socket. Change input_id and output_id to something meaningful in your workflow; two inputs of the same type with the default ids will collide.

Locally these nodes are pure pass-throughs of the value socket. At deploy time, the Runflow inference service rewrites each input’s upstream to inject the caller-supplied value and maps each output node id to its output_id so the callable API returns a stable, named set of artifacts.

Encoder bridges

On a recent ComfyUI (one exposing the comfy_api.latest module), the plugin also registers a Runflow/Save family. Each one encodes a native ComfyUI socket to a file under output/ and emits the relative filename on a STRING socket, ready to wire straight into a Runflow Output (File) node. On older installs these nodes are skipped at load with a single warning, and the rest of the plugin still works.

Node	Input	Format
Runflow Save Audio (FLAC)	AUDIO	FLAC, lossless.
Runflow Save Audio (MP3)	AUDIO	MP3, with a quality widget (V0, 128k, 320k).
Runflow Save Audio (Opus)	AUDIO	Opus, with a bitrate widget (64k to 320k).
Runflow Save Video (MP4)	VIDEO	MP4 / H.264.
Runflow Save Video (WEBM)	IMAGE batch + fps	WebM / VP9 or AV1.

Auto setup

Directly below Deploy on the same node, the Auto setup button installs every custom node and downloads every model the active workflow references. Useful when you load someone else’s workflow and want to skip chasing dependencies by hand. It is also the worst possible button to click on a workflow you do not trust (see the warning at the top of the page).

Clicking the button opens a modal with two checkboxes (Install missing custom nodes, Download missing models) and a Start button.

The Auto setup modal: pick whether to install missing custom nodes, download missing models, or both, then click Start.

While the job runs, the modal shows a byte-progress bar for the current model download and a count-progress bar for custom-node installs; models and nodes install in parallel. When the job finishes, click Restart ComfyUI in the modal so the newly installed nodes register.

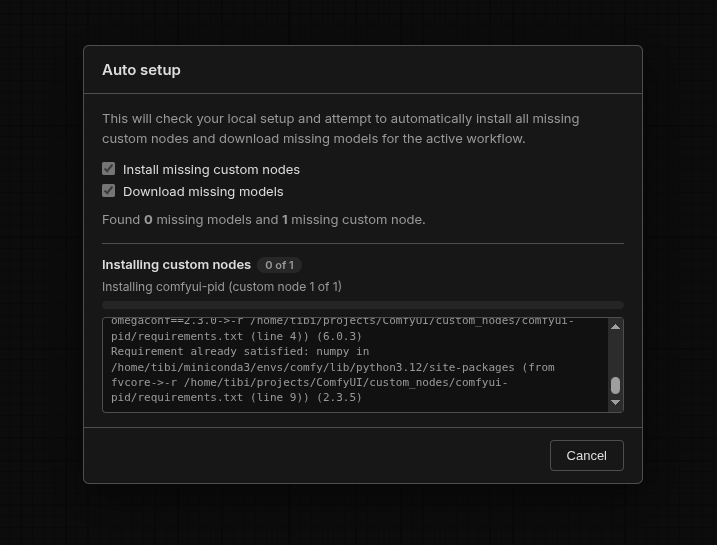

Auto setup in progress: a summary of how many models and custom nodes are missing, per-item progress bars, and a live log of the running pip install.

Auto setup uses git clone --depth=1 plus git fetch --depth=1 origin <sha> plus git checkout <sha> (with a full-clone fallback if the host disables SHA-targeted fetches), then python -m pip install -r requirements.txt if the cloned repo carries one. Works on Linux, macOS, and Windows.

Workflows can also declare model-download URLs in properties.models[].url. The deploy worker fetches those server-side before running the workflow. A hostile URL there is a server-side problem the platform mitigates, but review the URLs before deploying a community workflow; the dashboard surfaces the recorded graph after deploy if you want to double-check.

The Runflow settings panel

Everything the plugin stores on your machine lives under ComfyUI Settings → Runflow, split into two groups: Connection and Authentication. None of these values are ever written into a workflow file.

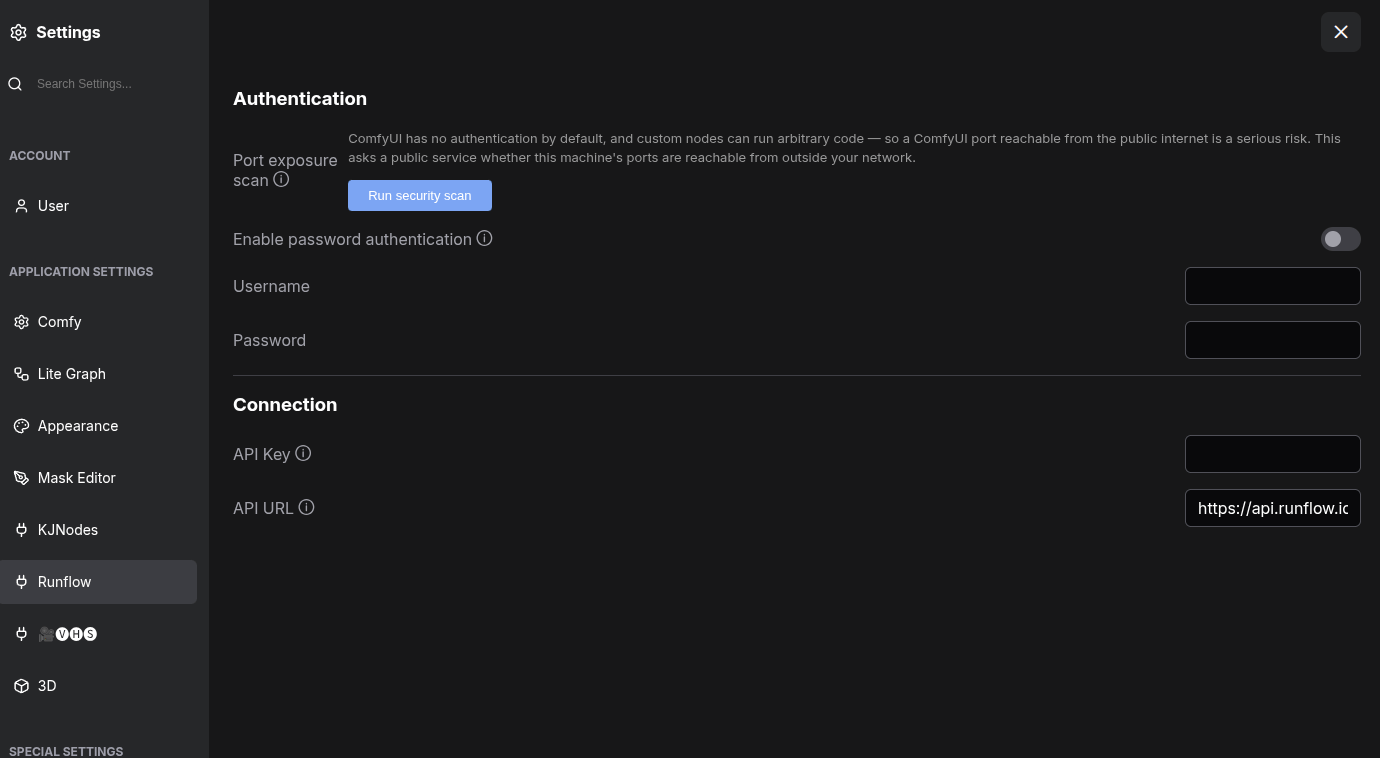

The Runflow settings panel: the Authentication group (port exposure scan and password authentication) above the Connection group (API key and API URL).

Connection

The two fields the Deploy button reads, both covered in Step 2:

Setting	Default	What it is
API Key (Runflow.ApiKey)	(empty)	The rf_live_* key used when the Deploy node’s api_key widget is empty.
API URL (Runflow.ApiUrl)	https://api.runflow.io	API base URL. Override only when running against a staging stack.

Authentication

ComfyUI ships no authentication by default, and custom nodes can run arbitrary code on the host. A ComfyUI port reachable from the public internet is therefore a serious risk: anyone who finds it can execute code on your machine. This group helps you detect and close that exposure.

Setting	Default	What it is
Enable password authentication	off	Require HTTP Basic auth on every request to this ComfyUI server. Takes effect only once both a username and password are set.
Username / Password	(empty)	Credentials checked by the auth layer, stored in runflow_security.json next to your ComfyUI install.

Port exposure scan

Click Run security scan to check whether this machine is reachable from outside your network:

1. It reports ComfyUI’s listen binding, read locally from its --listen / --port args. Binding to 0.0.0.0 / :: (all interfaces) is flagged in red; 127.0.0.1 (local only) is green.
2. It looks up your public IP, then asks the third-party service portchecker.io whether your ComfyUI port (plus 80, 8080, 443) is reachable from the internet, showing each port as OPEN or closed.

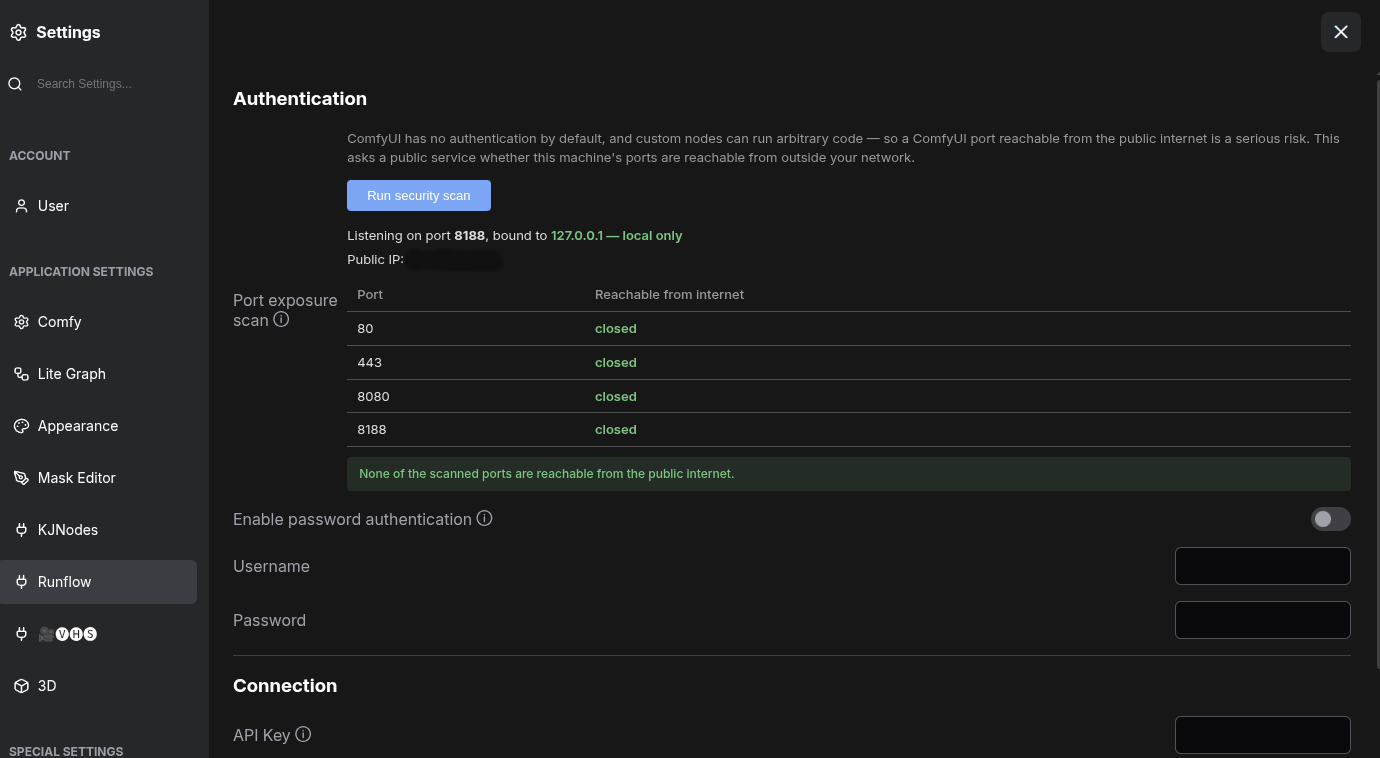

A completed port exposure scan: ComfyUI bound to 127.0.0.1 (local only) with every probed port closed from the internet.

The scan sends your public IP address to portchecker.io so it can probe you from the outside. No workflow data is sent. If a port shows OPEN (or you are bound to all interfaces), close the exposure: enable password authentication above, put ComfyUI behind a firewall or an authenticated reverse proxy, or bind to localhost only (start ComfyUI without --listen, or with --listen 127.0.0.1).

Troubleshooting

• No Runflow category in the node picker. ComfyUI loaded before the plugin was on disk, the plugin landed in the wrong custom_nodes/ directory, or you only refreshed the browser tab. Confirm the path, then fully restart the ComfyUI server process.
• Clicking Deploy raises an alert about an unconfigured key or URL. Either Runflow.ApiKey is blank in Settings (and the node’s api_key widget is also blank), or Runflow.ApiUrl was cleared. Save the key under Settings and click Deploy again.
• Deploy returns 401 Unauthorized. The key is missing or revoked. Reissue and re-save under Settings.
• Deploy raises a lookup failed or 403 Forbidden alert on redeploy. Deploy first GETs the existing slug, then PATCHes it. A key with comfyui-workflows:create but no :read fails at the lookup with lookup failed; a key with :read but no :edit fails at the PATCH with 403. Reissue with all three of read, create, edit for iterative deploys.
• Deploy alerts that endpoint_name must be URL-safe. The slug came out empty after stripping characters outside a-z, 0-9, -, _. Pick a name with at least one allowed character.
• A workflow that runs locally fails on Runflow. Local-only models or custom nodes are not on the worker. Click Auto setup locally first to confirm the workflow resolves (only on workflows you trust). Models declared via properties.models URLs deploy without needing a local copy; widget-selected models must exist locally or carry a URL fallback.
• The endpoint slug changed unexpectedly. Renaming endpoint_name creates a new slug. To replace an existing endpoint, keep the same name and rely on comfyui-workflows:edit.
